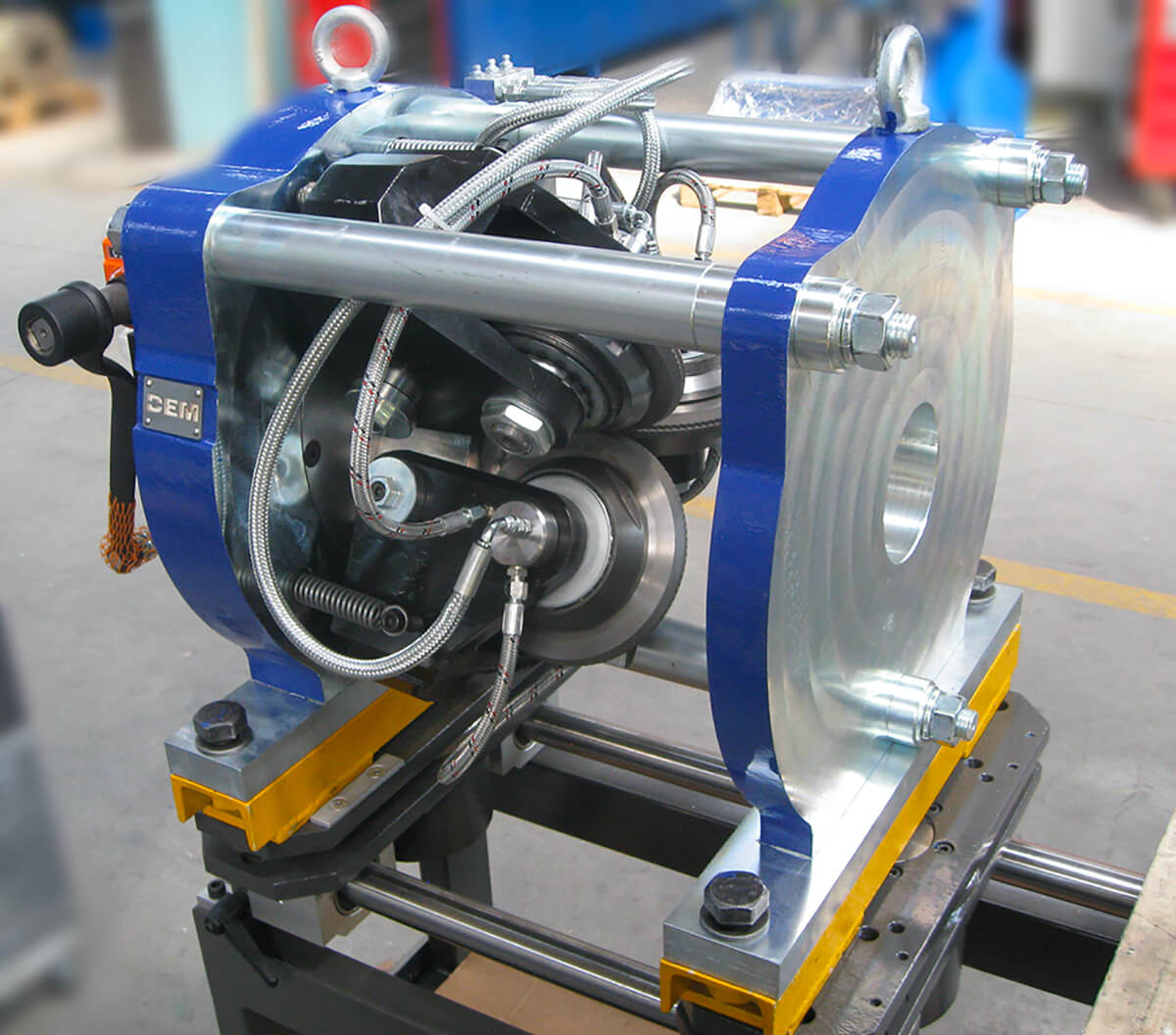

ROLLING
CASSETTES

Low, medium and high carbon steel smooth wires. Low, medium and high carbon steel ribbed (reinforced or indented) wires. Copper, aluminum, and titanium wires. Ropes, PC pre-stressed wires and special section wires.

CASSETTES
WORKING RANGE

Wire		Rolls		Roll holders		Casettes models
Inlet max [mm]	Outlet min [mm]	Ø max/min [mm]	Thickness [mm]	Roll holder [mm]	Shaft DD [mm]
8	2.7	123/125	15/20	82-15/20	25/26	CLF-125-DD-RR-F
14	3.5	123/150	15/20	90/82-15/20	25/26/30	CLF-150-DD-RR-F
16	3.5	123/150	20/25	90/82-15/20	25/26/30	CLF-150-DD-RR-F-R
20	6.0	150/180	30/25	110-15/20/25	30/40	CLF-180-DD-RR-F
25	8.0	200/240	20/25/30/40	150-25/30	50/70	CLF-240-DD-RR-F

CASSETTES
GENERAL DRAWING

Model	A	B	C	D	E	F	G	H
CLF-125-F	513	380	170	340	353	350	20	Ø 20
CLF-150-F	674	440	200	405	430	395	25	Ø 22
CLF-180-F	888	520	235	475	520	470	30	Ø 27
CLF-240-F	1246	700	320	724	760	630	40	Ø 35
