HORIZONTAL
TAKE UP FOR
PERFECT LAYING
COILING

Sizes: generally for 1 to 3 tons coils and up to 5 tons. OD, ID and height of coils adjustable. Traverse oscillating for Perfect Laying Coiling.

Single or double arrangement with automatic transfer and clamping of wire. Suitable for all ferrous and non-ferrous metals, for solid or core wire. Coil unloading by lifting trolleys, or tilting unit.

HORIZONTAL DOUBLE
TAKE UP FOR PERFECT LAYING COILING

Sizes: generally for 1 to 3 tons coils and up to 5 tons. OD, ID and height of coils adjustable. Traverse oscillating for Perfect Laying Coiling.

Double arrangement with automatic transfer and clamping of wire. Suitable for all ferrous and non-ferrous metals, for solid or core wire. Coil unloading by lifting trolleys, or tilting unit.

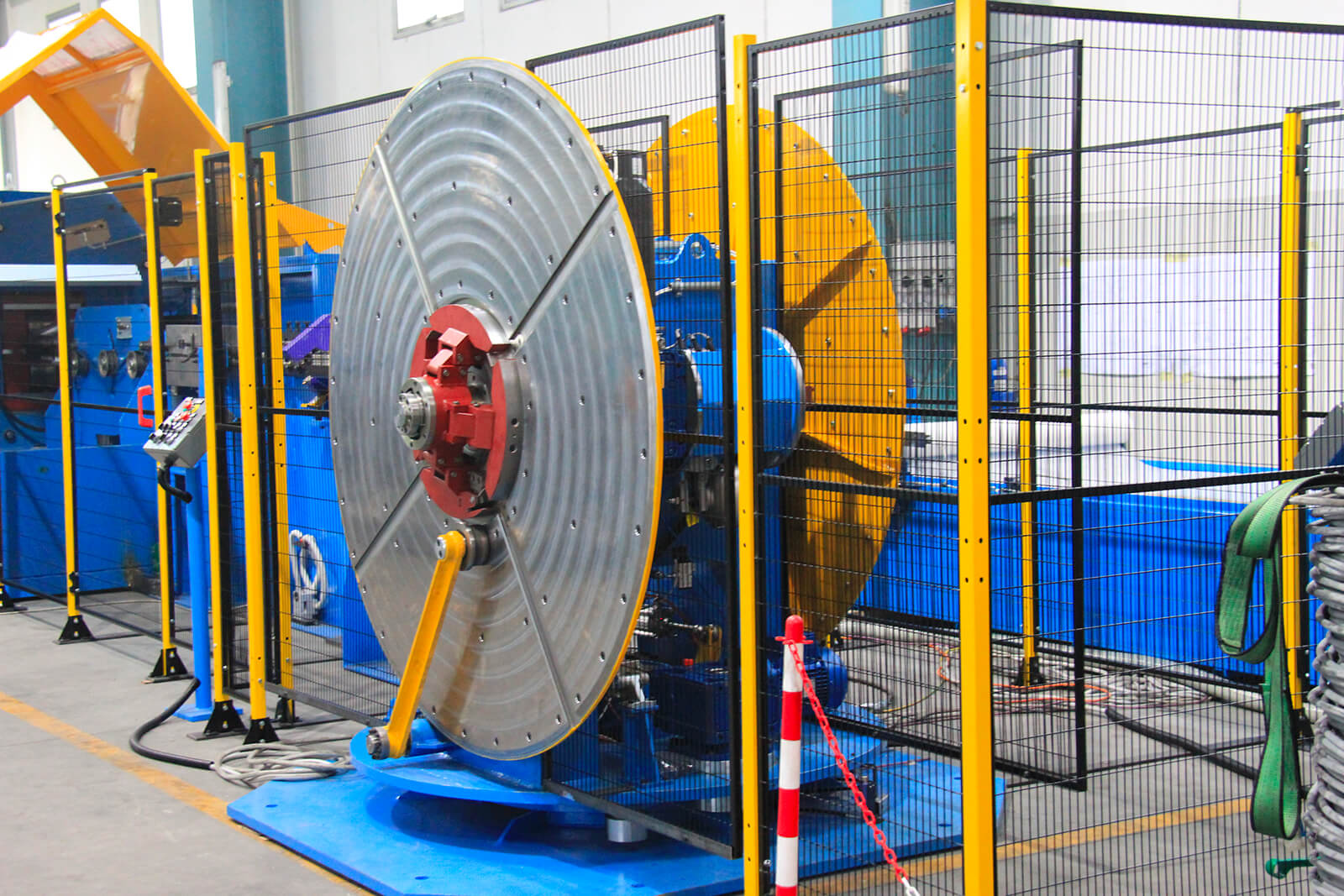

HORIZONTAL DOUBLE
TAKE UP FOR SINGLE
LAYER COILING

OD or ID of single layer coil (pancake) adjustable. With coil unloading tool.

HORIZONTAL ROTATING
SPOOLS TAKE-UP

General sizes:

1 ton or spool flange Ø 800 mm

2 ton or spool flange Ø 1000 mm

3 ton or spool flange Ø 1250 mm

5 ton or spool flange Ø 1400 mm.

Either double-support or cantilever , depending upon spool capacity. It can be fixed or traverse oscillating. Suitable for all ferrous and non-ferrous metals.
