It is made up of 1 or 2 vertical upenders and a column with a drum wheel on top. Recommended for low carbon steel up to Ø 16 mm. Reinforced version can pay off up to Ø 20 mm.
An upgraded solution to pay off larger diameters than those mentioned above or material other than low carbon, is made up of 1 or 2 upenders that can operate either as fixed (overhead unwinding) or rotating (tangential unwinding).

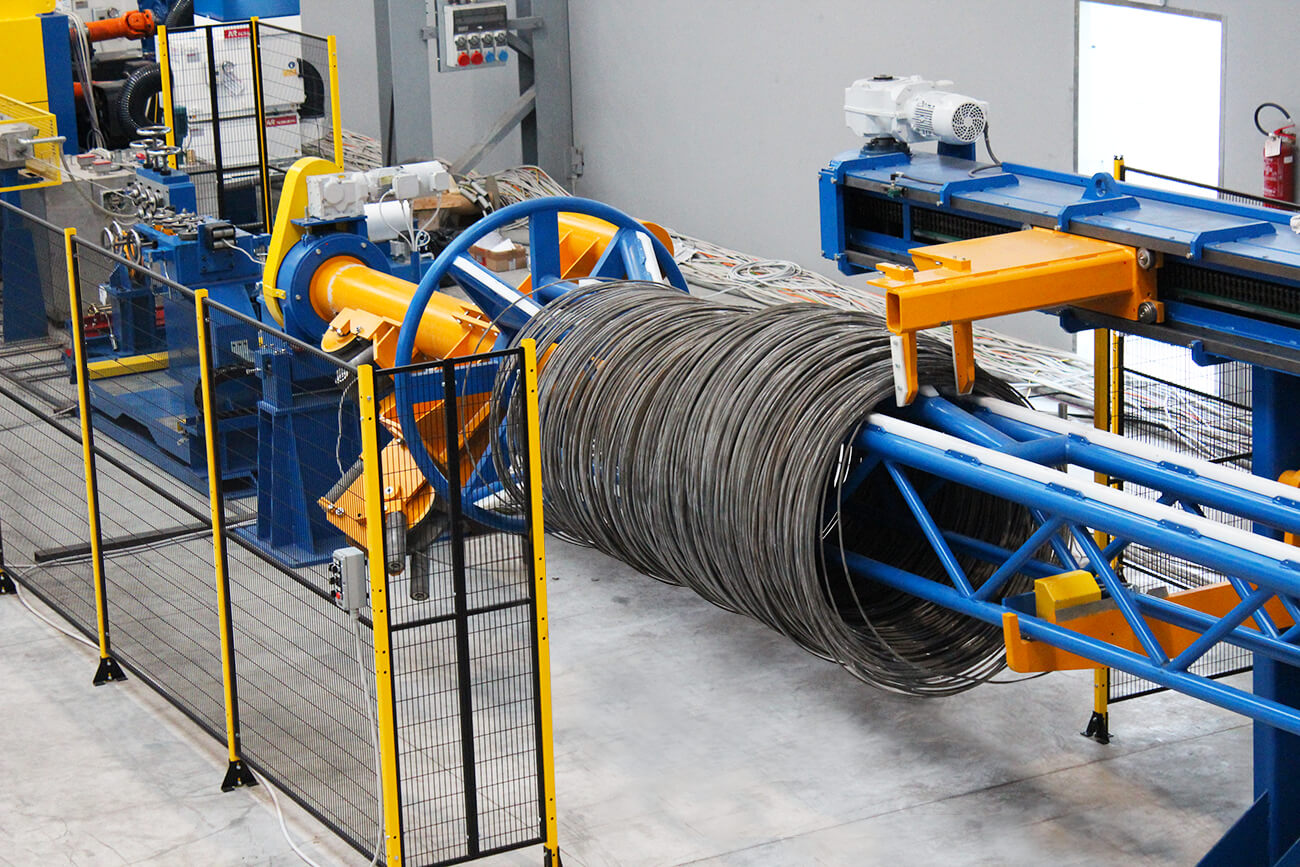

It is made up of a horizontal beam on which 1 or more rod coils are loaded. Additional coils other than first can be loaded without having to stop the ongoing coil pay-off operations.
Recommended for high carbon steel from 8 to 25 mm. It allows ceaseless rolling if coupled with a vertical butt welder. It is conceived not to damage rod surface.
1 t or spool flange Ø 800 mm
2 t or spool flange Ø 1000 mm
3 t or spool flange Ø 1250 mm
5 t or spool flange Ø 1400 mm.
Either double-support or cantilever, depending upon spool capacity.
It can be either fixed or traverse oscillating.
Suitable for ferrous and non-ferrous metals.

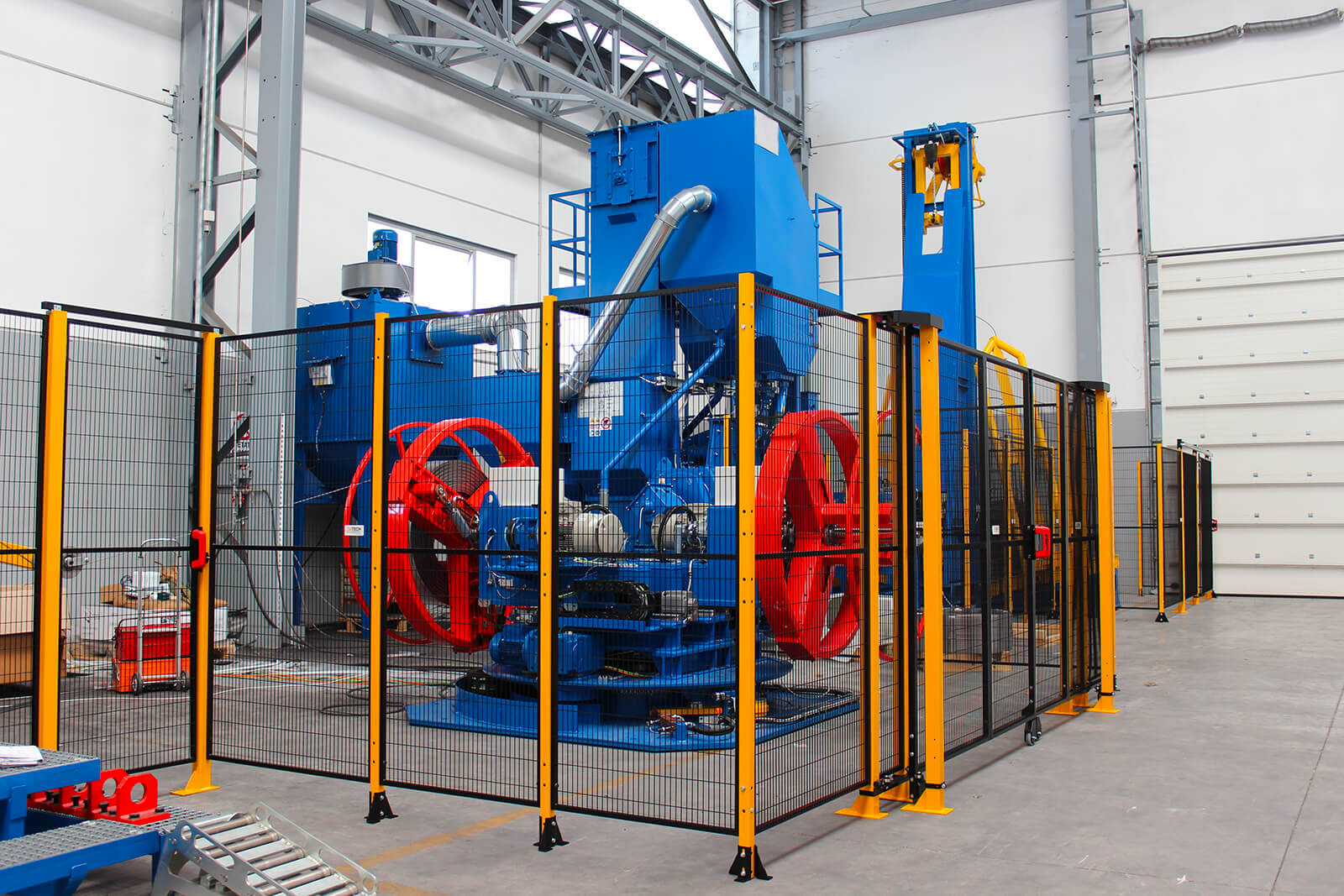

It is made up of 1 or 2 rotating vertical upenders mounted on a rotating platform.
Recommended for high carbon steel and low carbon steel, if the latter having large diameter.
It is conceived not to damage rod surface.
Either single and traverse oscillating, or double mounted on a rotating platform for fast change, with each unit traverse oscillating independently.
Ideal for flat wire second process run in rolling mill for widening, skin-pass, finishing etc.
It is conceived not to damage the flat wire.
