RWR - LINES FOR SPOOLS - Dem

WIRE ON SPOOLS
WITH HORIZONTAL
SINGLE SPOOLER

PERFORMANCE FEATURES
Finished wire diameters: 2.7 – 20 mm Rolling speed: up to 20 m/s Spool capacity: up to 5000 kg
MECHANICAL FEATURES
1 to 6 pulling blocks, vertical or horizontal Equipped with cassettes, micro-cassettes or dies Stress relieving unit - option Horizontal axis spooler suitable to accept multiple types of spools (fixed or collapsible) Overturnig spools machine – option Discover more about DEM innovative technological packages

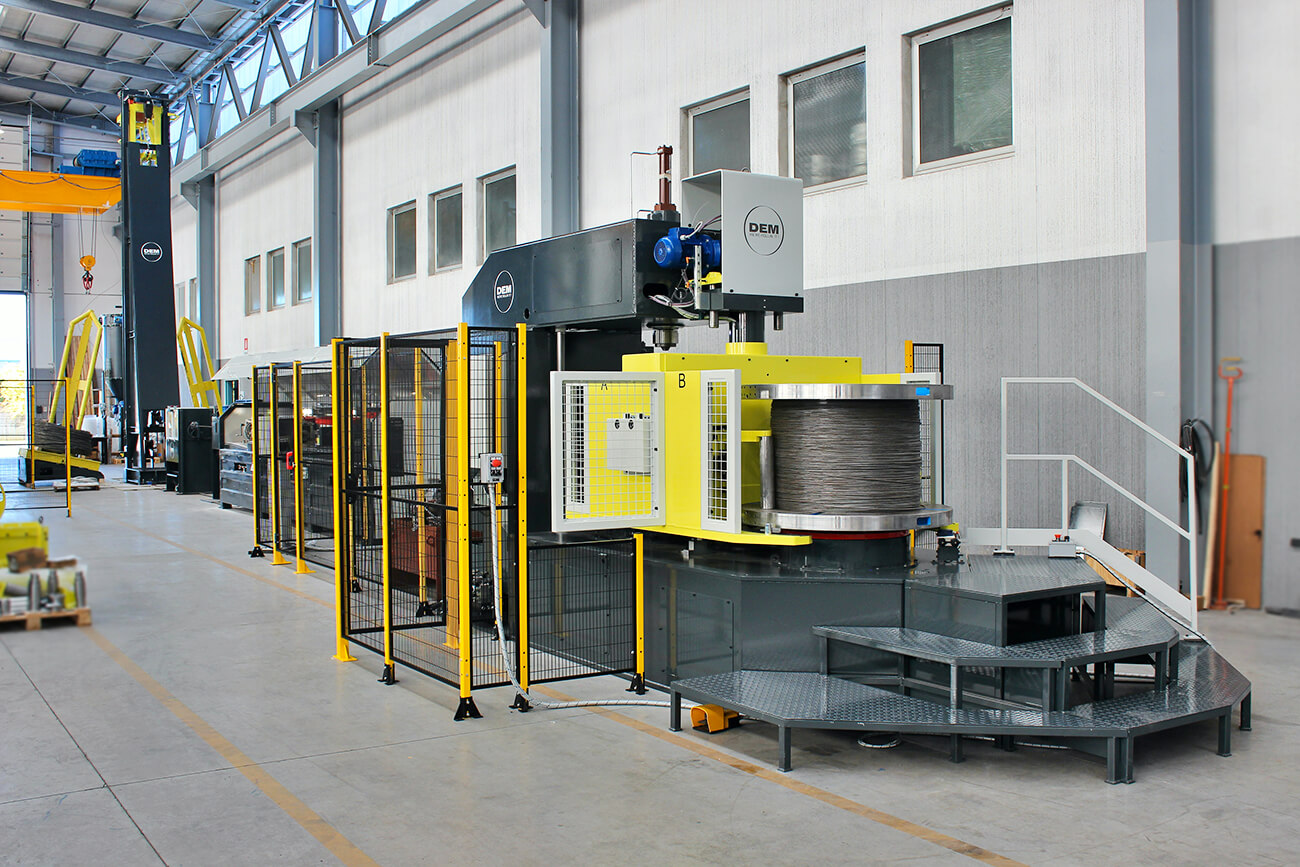

WIRE ON SPOOLS
WITH VERTICAL
SINGLE SPOOLER

PERFORMANCE FEATURES
Finished wire diameters: 2.7 – 20 mm Rolling speed: up to 20 m/s Spool capacity: up to 5000 kg
MECHANICAL FEATURES
1 to 6 pulling blocks, vertical or horizontal Equipped with cassettes, micro-cassettes or dies Stress relieving unit - option Vertical axis spooler suitable to accept multiple types of spools (fixed or collapsible) Discover more about DEM innovative technological packages

WIRE ON SPOOLS
WITH DOUBLE
VERTICAL SPOOLER

PERFORMANCE FEATURES
Finished wire diameters: 2.7 – 20 mm Rolling speed: up to 20 m/s Spool capacity: up to 8000 kg
MECHANICAL FEATURES
1 to 6 pulling blocks, vertical or horizontal Equipped with cassettes, micro-cassettes or dies Stress relieving unit - option Fully automatic double spooler with vertical axis suitable to accept multiple types of spools (fixed or collapsible) Fully automatic spools handling and transfering station – option Discover more about DEM innovative technological packages

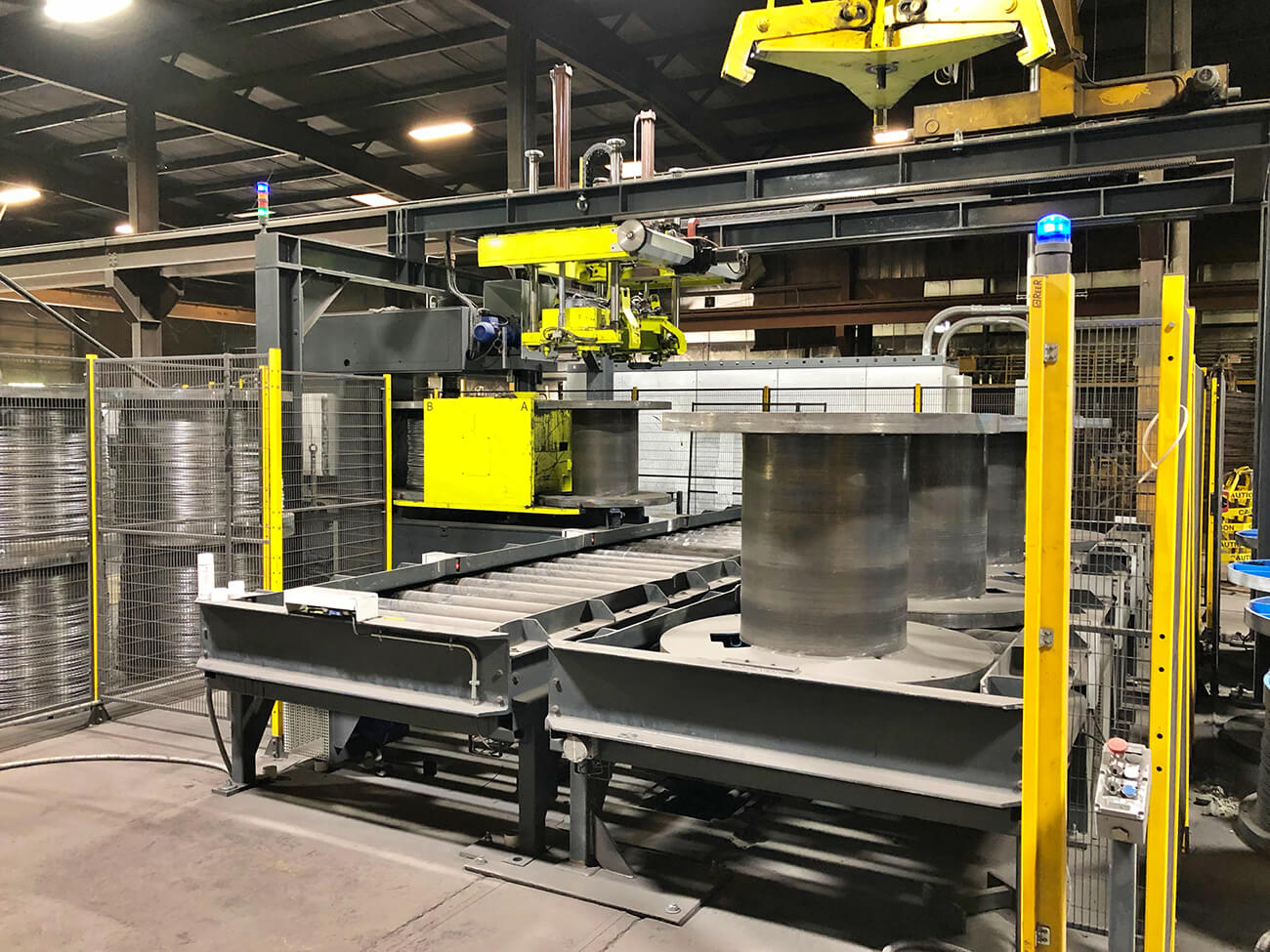

FULLY AUTOMATIC
SPOOLS HANDLING AND TRANSFERING STATION

MECHANICAL FEATURES
Free spools evacuation and buffering Full spools tracking Interface with MES
