RWR - PACKAGING - DEM

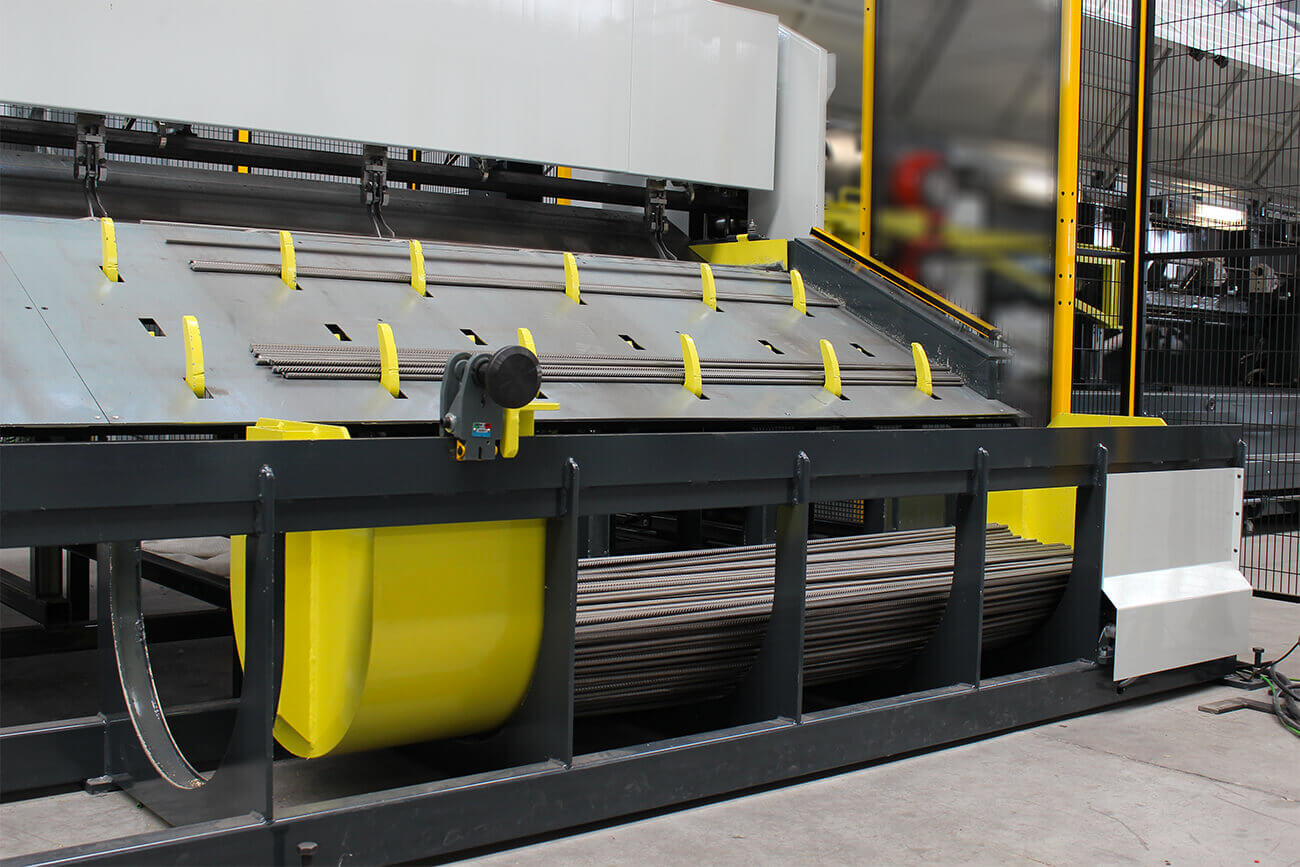

BARS UNLOADING
BENCH FOR BARS

MACHINE MODELS
Bars Unloading Bench – Single front Bars Unloading Bench – Double front
ROLLING SPEED	BAR LENGTH	FINISHED WIRE DIAMETERS
Up to 8 m/s	0.6 – 15 m	3.4 – 16 mm
MAIN FEATURES
Super silent bars discharge system One or more intermediate positions for bars buffering Fast cut-to-length changeover
Other available options
Bars alignment by a series of endless screws driven by an electric motor Downstream bundle binding machine with weighing station Final bundle collecting pocket on travelling carriage

SPOOLERS FOR
WIRE ON SPOOLS

MACHINE MODELS
Single Horizontal Spooler Single Vertical Spooler Double Vertical Spooler – automatic/fully automatic
ROLLING SPEED	SPOOL CAPACITY	FINISHED WIRE DIAMETERS
Up to 20 m/s	Up to 8000 kg	2.7 – 20 mm
MAIN FEATURES
For plain, ribbed or hot-rolled wire Suitable to accept multiple types of spools (fixed or collapsible) Wire length measurement Perfect wire layer deposition Double Vertical Spooler: Automatic spool change-over Automatic head and tail wire clamping on the spool
Other available options

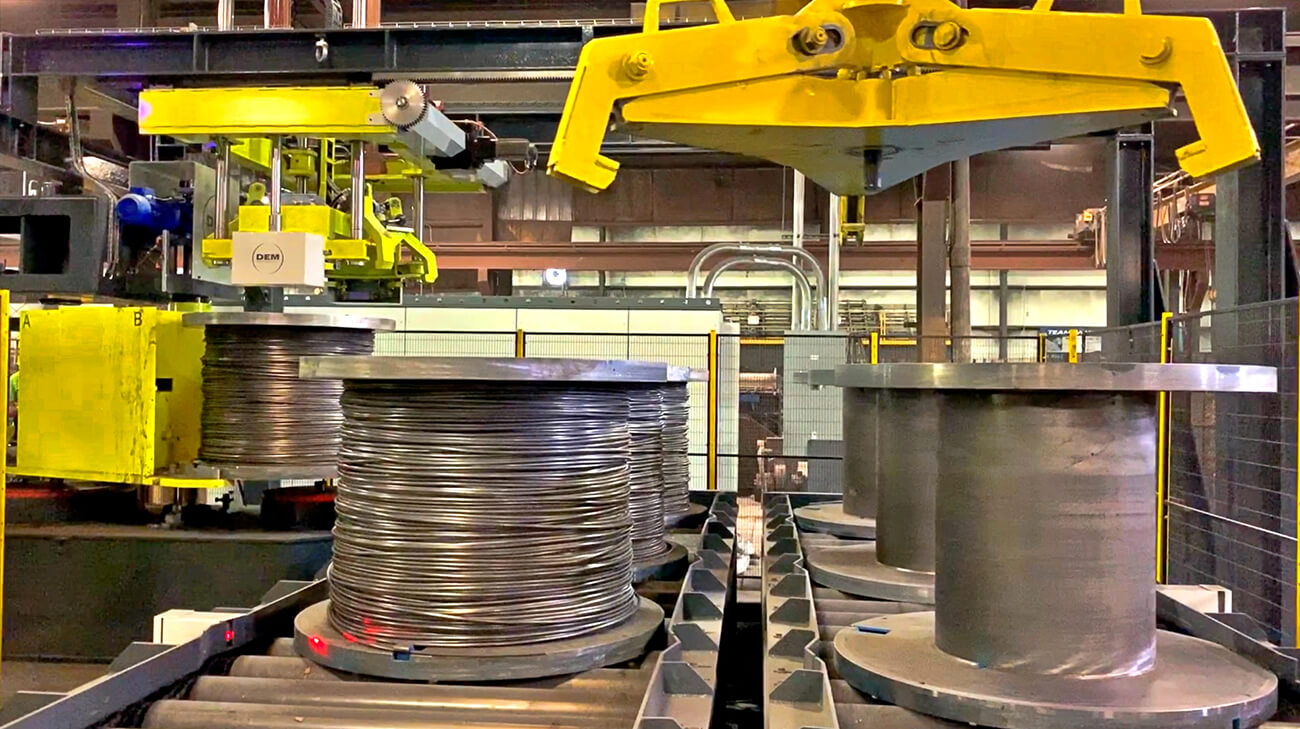

Fully automatic spools manipulator with roller conveyor

SPOOLERS FOR WIRE
ON COMPACT COILS
USING COLLAPSIBLE
SPOOLS

MACHINE MODELS
Single Horizontal Spooler Single Vertical Spooler Double Vertical Spooler – automatic/fully automatic
ROLLING SPEED	SPOOL CAPACITY	FINISHED WIRE DIAMETERS
Up to 20 m/s	Up to 8000 kg	2.7 – 20 mm
MAIN FEATURES
For plain, ribbed or hot-rolled wire Suitable to accept multiple types of collapsible spools Wire length measurement Perfect wire layer deposition Double Vertical Spooler: Automatic spool changeover Automatic head and tail wire clamping on the spool

FULLY AUTOMATIC
SPOOLERS FOR
COMPACT COILS

Free coil weight	Strapping	Final wire diamEters
2 - 5 t (8 t on request)	4 - 8 straps per coil	2.7 - 20 mm
Fully automated operations
Head and tail hooking Wire cutting Opening/closing of the automatic collapsible spool Coil strapping / weighing / labelling Wire sampling Free coils evacuation and buffering
Other available options
Full product tracking Interface with MES

STATIC COILER
FOR DEAD COILS

MACHINE MODEL
Horizontal axis heavy duty non-drawing static coiler with pattern laying
ROLLING SPEED	WIRE CARRIER CAPACITY	FINISHED WIRE DIAMETERS
Up to 20 m/s	Up to 3000 kg	2.7 – 10 mm
MAIN FEATURES
Suitable for taking up steel wire in pattern laid (rosette) coils onto spider carriers Automatic carrier changeover without stopping the line An automatically controlled deposition system ensures a perfect laid coil
